Candy Cane Stirrups
for Maquet, Steris
& All Major Tables.
The classic lithotomy stirrup — engineered to clinical grade. CNC-machined SUS304 stainless, rated 350 lbs, adjustable 28″–44″. Compatible with all global rail standards. Save 40–50% vs Allen Medical or SchureMed — direct from our ISO 13485 certified factory.
Clinical Overview
What Are Candy Cane Stirrups —
And Why Surgeons Choose Them
The most widely used stirrup design in lithotomy positioning, trusted in gynecology, urology, laparoscopy and colorectal surgery worldwide.
The Classic — Still the Surgeon's First Choice
Candy cane stirrups get their name from the distinctive curved upper arm that creates a natural cradle for the lower leg in lithotomy positioning. The telescoping vertical post locks from 28″ to 44″ above the table surface, while the hooked arm secures the ankle strap — no complex pneumatic boot mechanism required.
Surgeons prefer them for speed and operative access. They adjust single-handed in seconds, can be repositioned mid-procedure without breaking sterile field, and leave the entire foot and lower leg exposed — critical in vaginal, perineal, and anorectal cases where perineal access determines the working angle.
The SurgicalPillar G603C features an ergonomic twist-lock handle that locks and releases the height in one silent rotation — important in procedures where sudden mechanical noise must be avoided. Optional gel-lined ankle straps reduce pressure on the Achilles tendon and lateral malleolus during long procedures.
Candy Cane vs Boot Stirrups: Candy cane provides maximum perineal access and fast repositioning — ideal for vaginal, urologic, and colorectal surgery. Boot/pneumatic stirrups are preferred for long robotic or laparoscopic cases where foot pressure redistribution over time matters more. Contact us — SurgicalPillar supplies both.
Gynecologic Surgery
Standard positioning for hysterectomy, D&C, and laparoscopic GYN procedures. Full perineal exposure with no boot obstruction to the surgical field.
Urology & Cystoscopy
Supports bariatric patients up to 350 lbs safely. Preferred for cystoscopy, TURP, and ureteroscopy where rapid repositioning during the procedure is common.
Colorectal & Anorectal
Open perineal access for hemorrhoidectomy, lower rectal, and anal surgery. Single-handed repositioning allows the surgeon to adjust the lithotomy angle mid-procedure without assistance.
Technical Specifications
SurgicalPillar G603C vs. Competitors & Generic Alternatives
Not all candy cane stirrups are built the same. Here is the honest comparison — specifications that matter in the O.R.
| Specification | SurgicalPillar G603C | SchureMed 800-0012 | Generic / Budget |
|---|---|---|---|
| Steel Grade | SUS304 (food / medical grade) | Stainless (grade unspecified) | 201 — rust-prone |
| Machining | CNC ±0.02 mm | Not specified | Cast / stamped |
| Max Load per Side | 350 lbs / 160 kg | Not published | 70 lbs (low-rated) |
| Height Adjustment | 28″ – 44″ (71–112 cm) | 28″ – 44″ | 28″ – 40″ (limited) |
| Leg Clearance | 8″ (20 cm) | 8″ | Unspecified |
| Lock Mechanism | Ergonomic twist-lock · silent | Twist handle | Screw bolt (noisy) |
| Ankle Strap | Gel-pad + cotton (dual options) | Cotton strap (18″ double-loop) | Cotton only |
| Rail Compatibility | US · EU · UK · Japan (all 4) | US standard only | 1 standard only |
| CE Technical File | ✓ Provided | ✗ US only / FDA | ✗ Not available |
| ISO 13485 | ✓ Factory certified | ✗ Not published | ✗ Not certified |
| Pre-Shipment Load Test | ✓ Every unit, documented | Batch QC | ✗ None |
| Warranty | 2 Years — all metal parts | 1 Year | None / 30 days |
| OEM / White-Label | ✓ Available | ✗ No | ✗ No |
| Price vs Allen Medical | ~50% lower — factory direct | ~30% lower | Cheapest — but at what risk? |
Manufacturing Advantage
Why Choose SurgicalPillar™?
Direct from our ISO 13485 facility in Qufu, Shandong — full quality control, complete compliance documentation, and zero middlemen.
CNC-Machined SUS304 — Zero Material Compromise
Every stirrup machined to ±0.02 mm from medical-grade 304 stainless. No low-grade 201 steel, no casting. The result: a zero-play telescoping column that locks and holds without drift under full patient load.
Full CE & ISO 13485 Docs — Included Free with Every Order
Hospital tenders require a complete regulatory package. We supply: ISO 13485 factory certificate, CE technical file, IFU in English / German / French / Arabic, SUS304 material certificates, and 350 lb load test reports — all at zero extra cost.
100% Pre-Shipment Load Test — Not Batch Sampling
Every single pair is loaded beyond rated capacity on our in-house test jig before packaging. For bulk orders, Tony (manufacturing director) conducts a live WhatsApp video walkthrough of your production run at the facility before dispatch.
Factory Direct = 40–50% Below OEM Pricing
Same functionality as Allen Medical or SchureMed, at a fraction of the cost. No distributor layers between you and the factory floor. Transparent pricing, tiered discounts starting at 5 pairs, and a clear OEM path for distributors wanting their own brand.

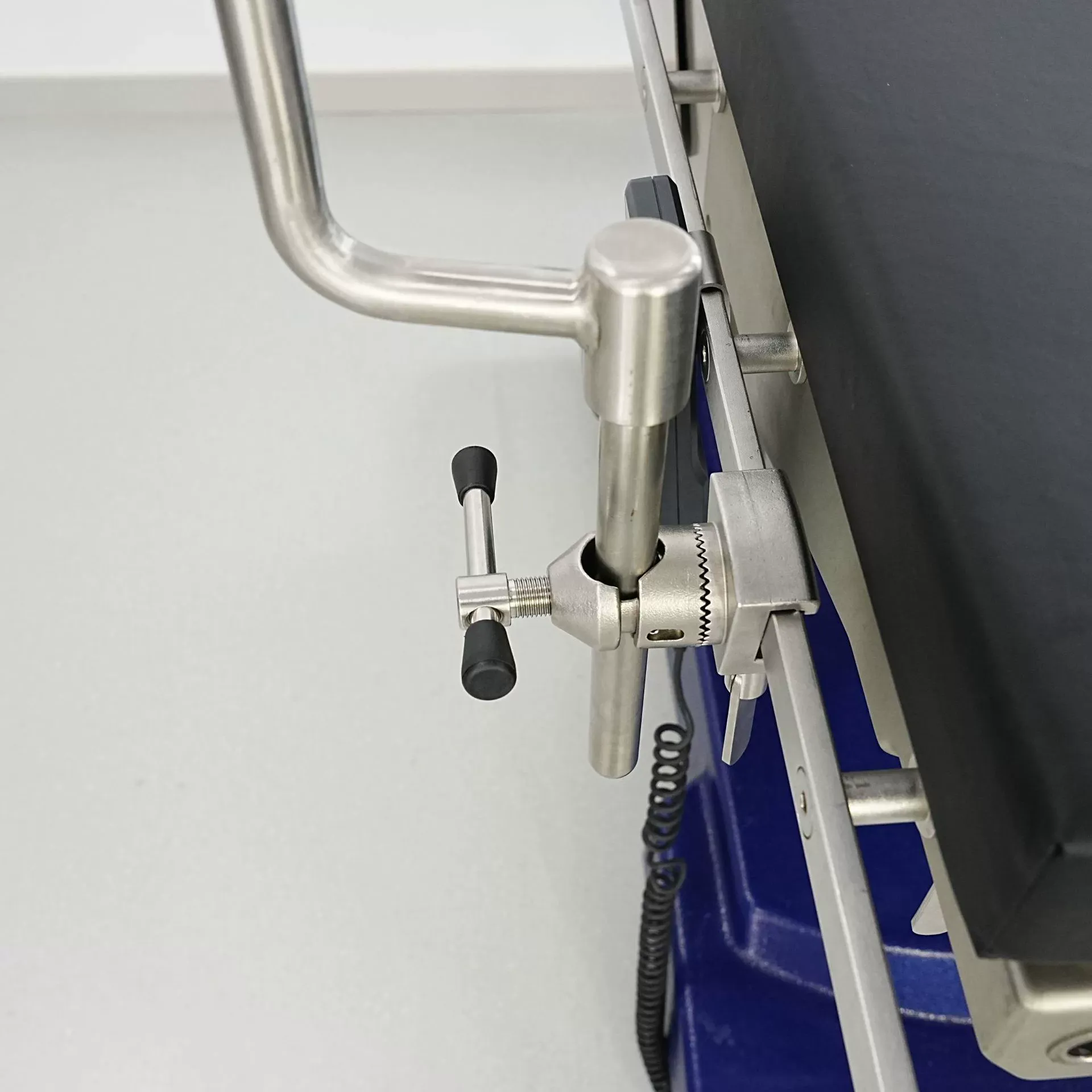

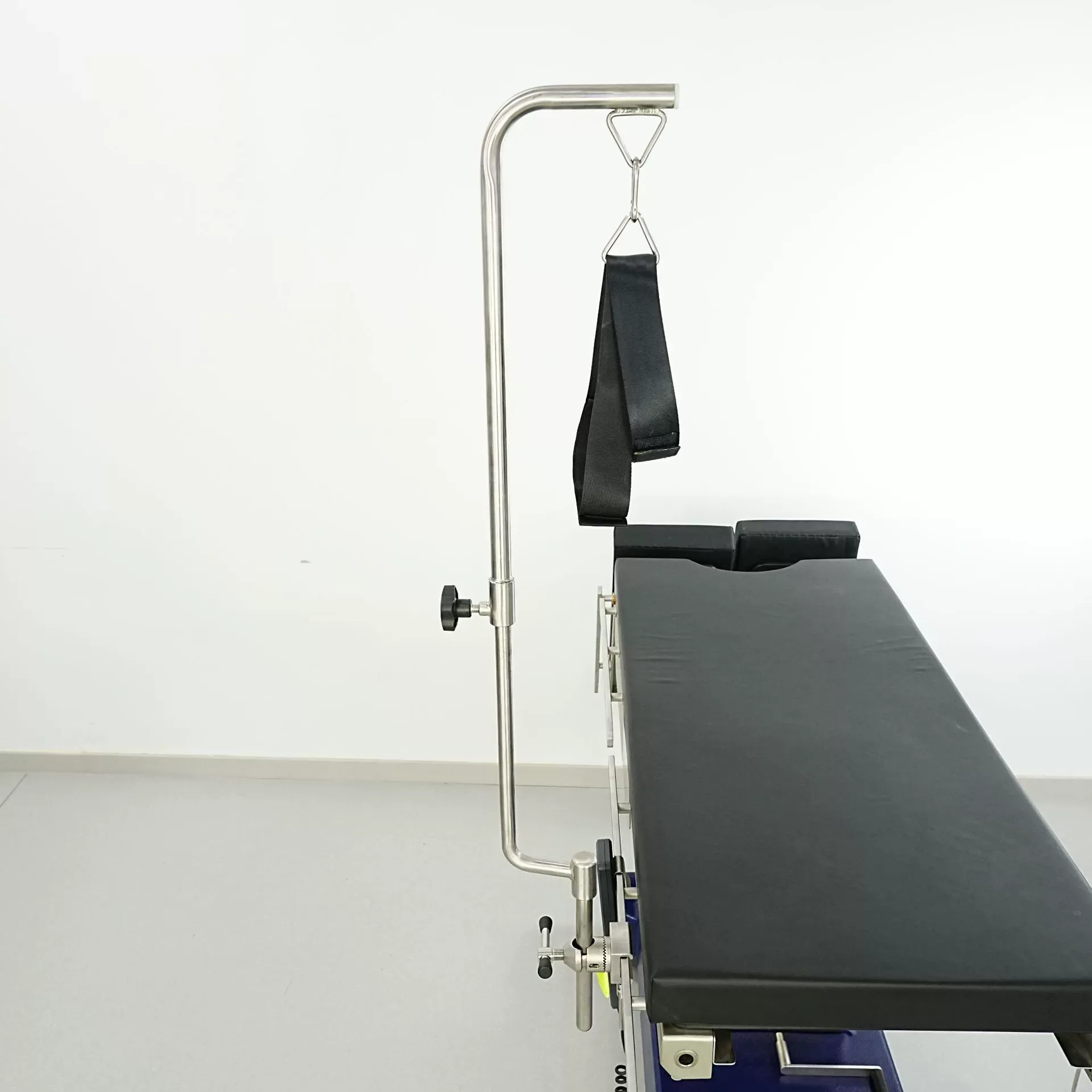

Product Detail
Engineer-Grade Craftsmanship, Up Close
Every component is precision-machined and inspected to ensure 100% compatibility with OEM rail standards--see the difference in the details.
Manufacturing Excellence
Quality You Can Trust. Ready to Ship.
At SurgicalPillar, we don't just sell parts — we manufacture them. Every set undergoes a strict 3-step QC process before leaving our facility.
Precision CNC Machining
All components machined from SUS304 stainless to ±0.02 mm tolerance. Zero-play telescoping action — no drift under patient load, no rattle during adjustment.
100% Load Testing — Every Unit
Each pair is individually tested beyond 350 lb capacity before packaging. Test record documented and available for your quality file. Not batch sampling — every single pair.
In-Stock & Ready to Ship
50+ sets held in warehouse for immediate dispatch. Air freight (7–14 days) or sea freight (25–35 days). Rush orders available. DDP shipping term available for most countries.
Live Video Factory Inspection
For all bulk orders, Tony (sales director) conducts a live WhatsApp video walkthrough of your exact production run before dispatch — full transparency, zero surprises.
