Universal Orthopedic Extension System
Convert any standard general operating table into a professional trauma surgery table in 2 minutes. Cut the OEM brand tax by up to 60%.
Engineered for O.R. Profitability
Why force your hospital clients to buy an expensive $50,000 orthopedic table? Our modular orthopedic extension docks onto their existing Maquet or Steris tables for under $4,000, saving them massive capital expenditures while doubling your sales margin.
Universal Rail Fit
Fits US (28.6x9.5mm) & EU (25x10mm) rails out-of-the-box.
100% Radiolucent
Premium T700 carbon fiber spars ensure artifact-free C-Arm imaging.
Freight-Optimized
Modular flat-pack design reduces shipping volume by 40%.
Detailed Specifications Matrix
Everything your engineering team needs for local public/private hospital tenders.
| Parameter | SurgicalPillar Standard Specs | OEM Benchmarks (Mizuho/Steris) |
|---|---|---|
| Traction Spar Material | 100% Solid Carbon Fiber (T700 grade) | Carbon Fiber / Metal Alloy mix |
| Traction Range | 0 - 200 mm (Infinite adjustment) | 0 - 180 mm (Stepped) |
| Max Load Capacity | 350 lbs (159 kg) Fully Extended | 300 lbs (136 kg) |
| Side Rail Adapters | Included: 2x SUS304 Universal Clamps | Sold Separately ($350 each) |
| Traction Boot Lining | Washable, Anti-slip Polymer Gel | Disposable Sponge / Polyurethane |

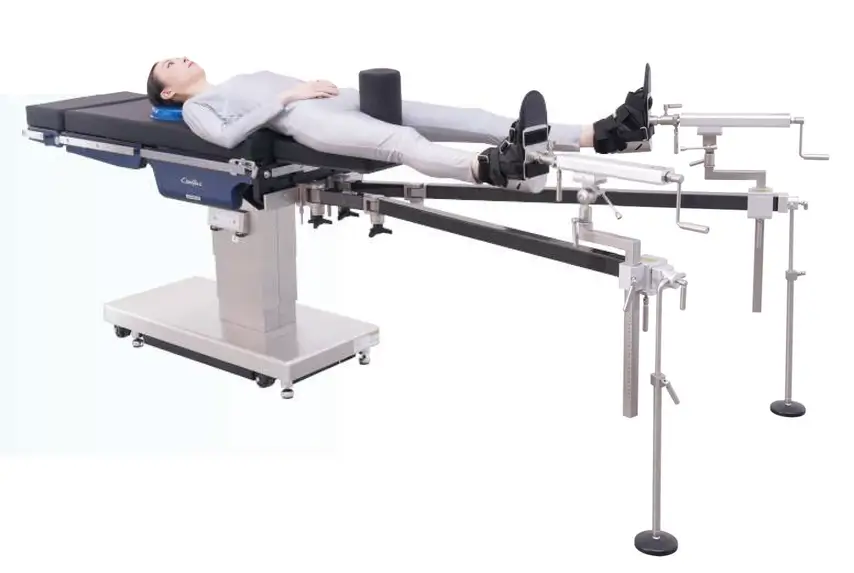

The Orthopedic Trauma System
4 best-selling models to meet a wide range of clinical needs

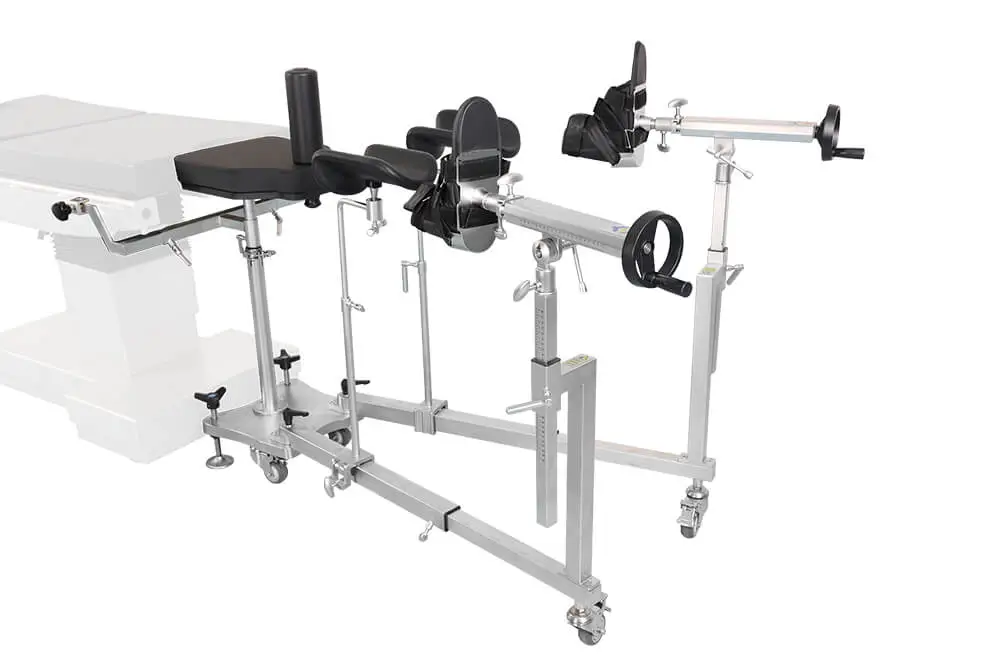

OE901 Floor Standing
Made from 304 stainless steel,Can be used with any standard operating table.

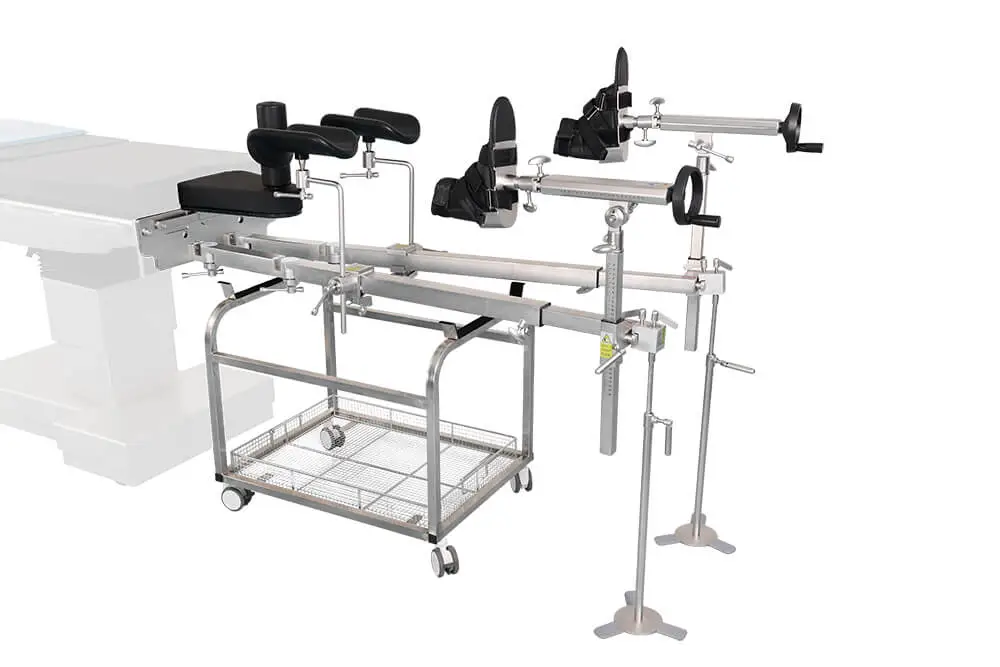

OE902 Suspended Model
Features a double-joint design and removable sections, allowing conversion for various multi-position surgical needs. Offers flexibility for complex lower limb cases.
OE903 Carbon Fiber
Maximize intraoperative imaging clarity with this high-transmittance carbon fiber traction frame. Ideal for procedures requiring extensive C-arm or X-ray use.
OE904H
Achieve optimal imaging clarity through complete carbon fiber radiolucency. Protect your team with weightless positioning assistance and ergonomic controls
Designed For Every Trauma Challenge
Ensure high-precision imaging and safe patient positioning in every scenario
Hip Fracture Reduction

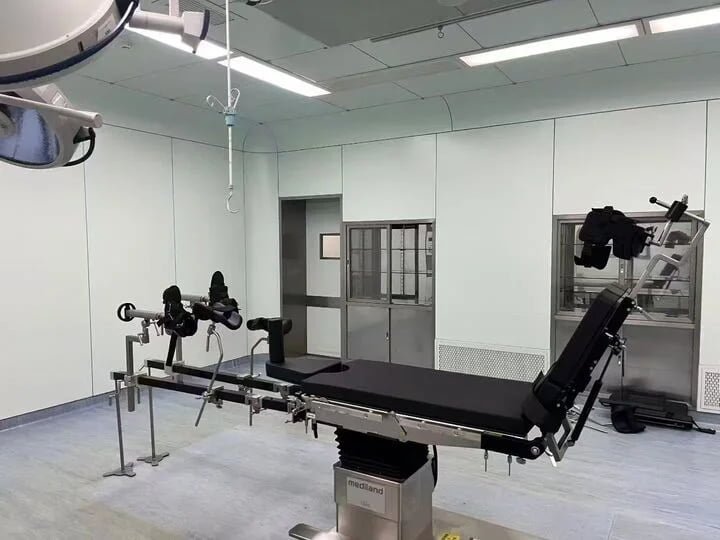

Match Mediland® Table
Match Berchtold® Table
C-Arm Fluoroscopy
Clear X-ray image

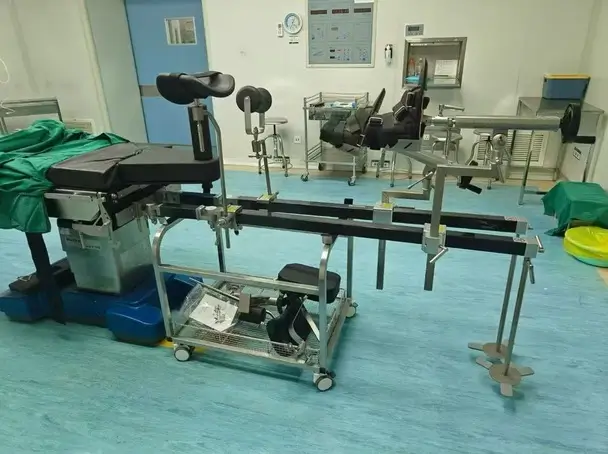

Match Mindray® Table
Why Distributors Partner With Us
15 Years Heritage
Operating under strict ISO 13485 (Medical Device) standards, our factory in Qufu, Shandong, ensures maximum mechanical precision. No outsourced components, no quality drift.
Flexible OEM / ODM
We don't just sell standard parts. We provide custom length adjustments, modular brackets, and custom branding (white-labeling) so you can bid on localized tenders under your own brand.
End-to-End B2B Support
Avoid shipping bulky individual air parcels. We offer strategic "nested loading" (packing items inside modular frames) and clear DDP/FOB terms to bypass customs hassles globally.
Pillar Medical Technology Co., Ltd
SurgicalPillar is a leading B2B developer and manufacturer of high-end O.R. patient positioning systems and accessories.
By controlling our entire supply chain — from premium T700 raw carbon fiber fabric to precision CNC steel milling — we bypass high-cost middleman markups. We are dedicated to helping medical dealers and global contractors win hospital bids through superior ROI.
100%
Quality Inspected
30+ Countries
Global Export Reach
Our Manufacturing Precision in Detail
Step inside our heavy-duty medical production facility. Every carbon fiber spar and surgical clamp is engineered through rigorous processes, combining high-grade raw materials with precise quality checks to ensure zero-play stability.
Carbon Fiber Layup
We use vacuum-autoclave cured T700 carbon fiber to manufacture our orthopedic spars. This delivers the absolute lowest X-ray attenuation rates (< 0.5 mm Al equivalent) and maximum load-bearing integrity.
CNC Precision
SUS304 parts milled to ±0.02 mm tolerances for smooth locks.
Certified Technician
A large team of experienced, skilled technicians ensures product quality.

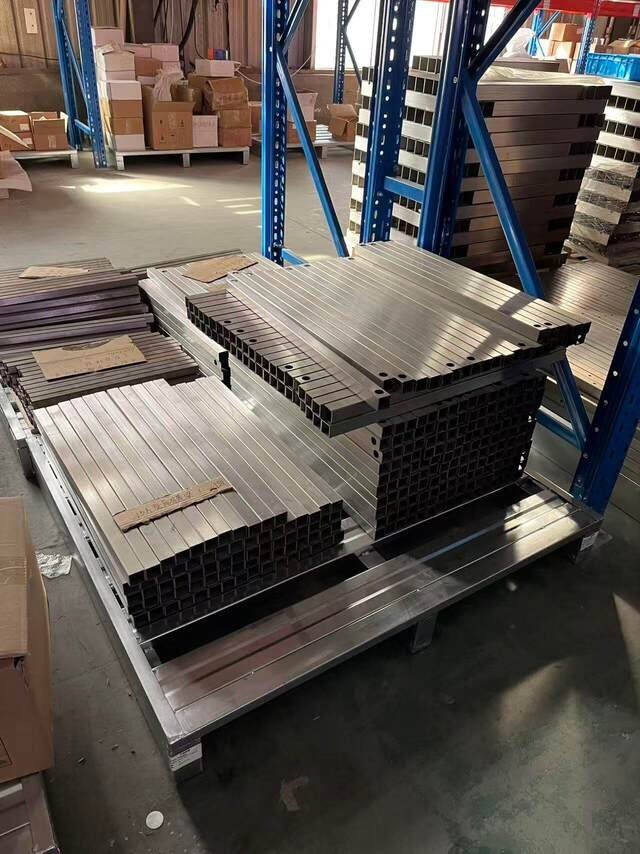

Quality Raw Materials
We select only the highest-quality raw materials to ensure the superior quality of our final products from the very beginning.
Modular Packaging
Flat-pack modular casing ensures zero damage and low shipping volume.
FAQ
What customization options are available for OEM/ODM orders?
What is your typical production lead time?
Do you ship under DDP terms to Latin America and Southeast Asia?
Initiate a Partnership
Connect with our engineering and sales team to discuss your project specifications, request a volume discount quote, or explore white-label OEM partnership opportunities.
