Surgical Beach Chair
for Shoulder Surgery —
Factory Direct Price.
Engineered for shoulder arthroscopy, rotator cuff repair, and shoulder arthroplasty. 0–90° articulation, 500 lb patient capacity, double-ball-joint headrest, removable shoulder panels. Fits any OR table. Save 40–50% vs Allen Medical or SchureMed — direct from our ISO 13485 certified facility.
Clinical Overview
What Is a Surgical Beach Chair — And Why Orthopedic Surgeons Rely on It
The standard of care for shoulder arthroscopy, rotator cuff repair, and shoulder arthroplasty. Trusted in orthopedic ORs on every continent.
The Gold Standard for Shoulder Surgery Positioning

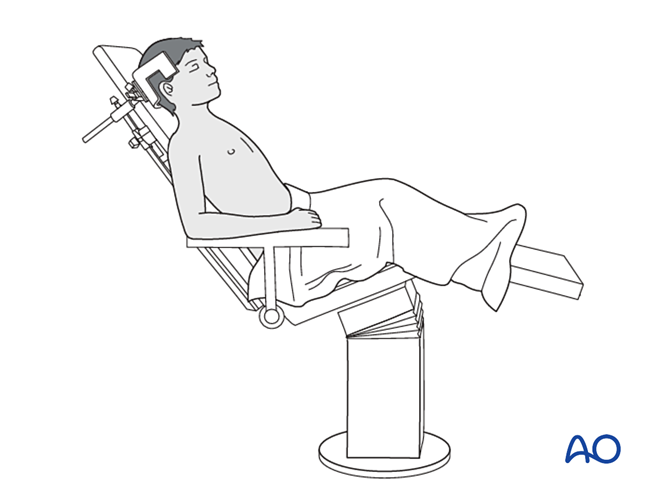

The surgical beach chair positions the patient in a semi-recumbent, upright "beach chair" posture — typically 45–90° of trunk elevation, with the operative shoulder hanging free of the table edge. This provides the surgeon unobstructed 360° access to the shoulder joint from both anterior and posterior approaches, without the arm traction required in lateral decubitus positioning.
The SurgicalPillar beach chair features a double-ball-joint headrest that tilts 30° in every direction — forward, backward, and side-to-side — critical for kyphotic patients and intraoperative C-arm imaging. Removable shoulder pull-away panels expose the entire deltopectoral region on the operative side without relocating the patient.
The integrated lateral brace attaches directly to the beach chair frame — not the OR table side rail — providing a rigid, patient-specific reference that remains stable even when the table is tilted intraoperatively. Smooth 0–90° articulation via ergonomic piston mechanism allows one-staff patient positioning from supine to beach chair in under 60 seconds.
Beach Chair vs. Lateral Decubitus: Beach chair is preferred for anterior and combined shoulder approaches, open surgeries, and arthroplasty where gravity-assisted distraction is needed. Lateral decubitus offers better posterior portal access for isolated arthroscopy. SurgicalPillar supplies both positioning systems — ask us for the right solution for your procedural mix.
Clinical positioning reference: View AO Foundation Beach Chair Position Guide
Shoulder Arthroscopy
The primary indication. Beach chair position provides ideal anterior and posterior portal access, gravity-assisted glenohumeral distraction, and a natural anatomical reference for rotator cuff visualization.
Shoulder Arthroplasty
Total and reverse shoulder replacement requires full deltopectoral exposure. Removable shoulder panels and the rigid lateral brace provide the stability essential for accurate implant seating.
AC Joint & Clavicle
Beach chair position is the preferred setup for acromioclavicular joint reconstruction, distal clavicle excision, and open ORIF of clavicle fractures requiring superior plating access.
Technical Specifications
SurgicalPillar BC503 vs. SchureMed vs. Generic
Every specification that matters in the O.R. — compared honestly.
| Specification | SurgicalPillar BC503 | SchureMed E-Z Lift | Generic / Budget |
|---|---|---|---|
| Articulation Range | -20° – 80° | 0° – 90° | 0° – 70° (limited) |
| Patient Weight Capacity | 500 lbs / 227 kg | 500 lbs (unconfirmed) | 300 lbs / 136 kg |
| Lift Mechanism | Piston-assist (smooth, controlled) | Piston system | Manual screw — slow |
| Headrest Type | Double-ball-joint · 30° all directions | Double-ball-joint | Fixed / single axis |
| Shoulder Panels | Pull-away · both sides | Pull-away panels | Fixed only |
| Lateral Brace | Frame-mounted (not table rail) | Frame-mounted | Table-rail mounted (unstable) |
| Pad Set | 5-piece deluxe set included | Deluxe pad set | Basic 2-piece |
| Frame Material | CNC SUS304 stainless | Stainless (grade unspecified) | Carbon steel / powder coat |
| Table Compatibility | ANY OR table — integrated clamps | Any OR table | Specific models only |
| CE Technical File | ✓ Provided | ✗ US FDA only | ✗ Not available |
| ISO 13485 Certificate | ✓ Factory certified | ✗ Not published | ✗ Not certified |
| Pre-Shipment Load Test | ✓ Every unit, documented | Batch QC | ✗ None |
| OEM / White-Label | ✓ Available | ✗ No | ✗ No |
| Factory Warranty | 2 Years — all components | 1 Year | None / 30 days |
| Price vs Allen Medical | ~45–50% lower — factory direct | ~25% lower | Cheap — but no docs |
Manufacturing Advantage
Why Choose SurgicalPillar™?
Direct from our ISO 13485 facility in Qufu, Shandong — full quality control, complete compliance documentation, and no middlemen between you and the factory floor.
CNC-Machined SUS304 — Engineering Grade Throughout
Every structural component machined from medical-grade 304 stainless steel. The beach chair frame sustains 500 lb patient loads with zero flex or creep — critical when the table tilts intraoperatively and the patient's weight shifts dynamically against the backrest.
Full CE & ISO 13485 Documentation — Free With Every Order
Hospital procurement and government tenders require a complete regulatory package. We include: ISO 13485 factory certificate, CE technical file, IFU in English / German / French / Arabic, SUS304 material certificates, and individual load test reports — at no additional cost.
100% Pre-Shipment Load Testing — Every Single Unit
Not batch sampling. Every beach chair is individually tested at full load before packaging. For bulk orders, Tony (manufacturing director) conducts a live WhatsApp video walkthrough of your specific production run at the facility before dispatch — full transparency.
Factory Direct = 45–50% Below Allen Medical & SchureMed
Comparable engineering, same clinical outcomes, at half the OEM price. No distributor markup between our factory and your hospital. Full OEM / white-label service available for regional distributors wanting their own branded beach chair line.
Real Installations
Trusted by Orthopedic Surgeons & Distributors Worldwide
Surgical beach chairs delivered and in active clinical use across 3 continents.
Active O.R. Setup

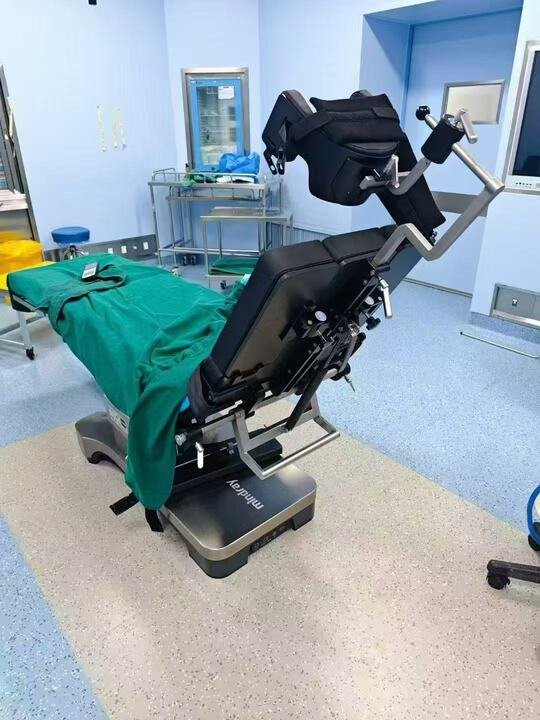

Surgical Beach Chair With Mindray Operating Table
Active O.R. Setup
Beach Chair Work With Maquet® Table
Active O.R. Setup
Surgical Beach Chair With Mediland Operating Table

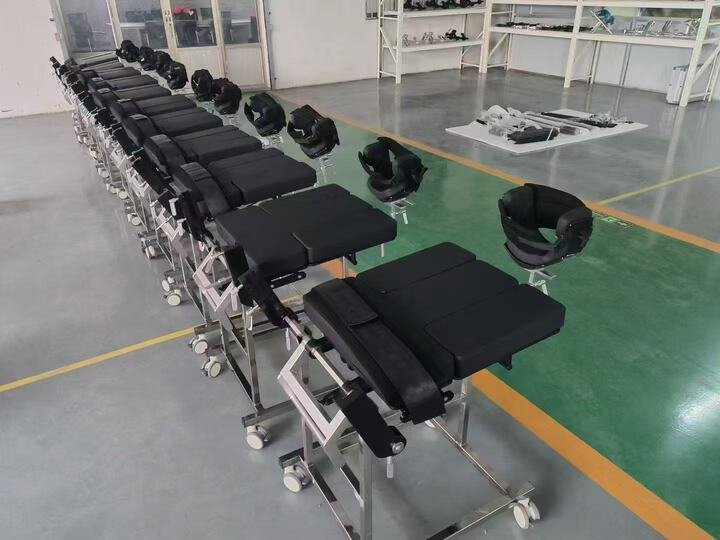

Manufacturing Excellence
Quality You Can Trust. Ready to Ship.
At SurgicalPillar, we manufacture every component in-house at our ISO 13485 certified facility in the Biomedical Industrial Park, Qufu, Shandong. Every beach chair undergoes a strict 4-step QC process before leaving the factory.
CNC Frame Machining
All structural members machined from SUS304 bar stock. Weld seams ground and electro-polished for autoclave-safe surface finish.
Mechanism & Pivot Assembly
Piston mechanism assembled and tested for smooth 0-90° articulation. Double-ball-joint headrest checked for full 30° range of motion in all planes.
500 lb Static Load Test
Full rated load applied to backrest and seat simultaneously. Any flex, joint creep, or mechanism slip = rejected and reworked.
Live Video Pre-Shipment Inspection
Bulk buyers receive a live WhatsApp video walkthrough of their exact order at the facility before dispatch.
Common Questions
What Buyers Ask Before Ordering
Does your beach chair attach to any OR table?
Yes. Integrated adjustable clamps fit any standard OR table side rail — Maquet, Steris, Trumpf, Mindray, Mizuho, Eschmann, and any other brand. Tell us your table model and we confirm compatibility before shipment. No adapter purchase required.
What compliance documents are available for hospital tenders?
Full package at zero extra cost: ISO 13485 factory certificate, CE technical file, IFU in English / German / French / Arabic, SUS304 material certificates, individual unit load test report, and packing list. Country-specific documentation available on request.
Can the beach chair be used for bariatric patients?
Yes — patient weight capacity is 500 lbs (227 kg). The frame-mounted lateral brace (not table-rail mounted) provides additional rigidity for high-BMI patients. Contact us for specific bariatric configuration requirements and additional stabilization options.
What is the minimum order quantity and lead time?
No MOQ for evaluation — 1 unit welcome for clinical trial. Distributor pricing tiers start at 3–5 units. Lead time: 10–18 business days by air, 28–40 days by sea. Rush production available for confirmed orders. DDP shipping term available for most countries.
Is OEM / white-label manufacturing available?
Yes. Full OEM service: custom brand name on all frame components, custom packaging and carry case, private-label IFU and CE documentation. OEM minimum quantities apply — contact Tony for a full OEM quotation including your brand identity requirements.
What is the warranty and how are defects resolved?
2-year factory warranty on all mechanical components and frame structures. Defective units are replaced or credited — no repair-only policies. Every unit ships with its individual load test record, so any warranty claim is resolved from documented QC data, not guesswork.
